Baby Infrared Non Contact Thermometer

Our infrared noncontact thermometer has been tried and tested by mums, medical professionals, and workplaces around Ireland and is fast becoming Ireland's most popular thermometer! Taking temperature for mums, personal use or workplaces has never been so easy providing convenience, accuracy, and precision. This high-grade infrared thermometer instantly and accurately takes a person’s temperature without the need for any physical contact. Simply point the unit at the patient’s forehead, click “Scan” and their temperature instantly will be displayed. This unit also comes equipped with three different temperature taking modes: Body, Room, and Surface temperature modes.

*Quality Assured: we have each and every batch we import independently quality checked and the accuracy verified just after manufacture and before import into Ireland.

A note about the manufacturer: Berrcom has been manufacturing high-quality thermometers for over 25 years and is the original equipment manufacturers for many high street medical device brands and pharmacy chains around the world.

This product qualifies for our Love me or Leave Me no quibble refund policy. If you’re not happy with the quality of this product we will give you a full refund no questions asked.



Quick Feature List: ( below to see more detailed features)

• non-contact infrared technology. Point and test.

• Results in 1 second. Ideal for testing people in quick succession

• Measures Surface, Room, or Body temperature.

• High Fever Alarm: Color-coded alert system and Audible Alarm. Takes the guess work out.

• Gives both Fahrenheit and Celsius readings. Switch to your preference.

• Auto power off to ensure long life batteries ( not included).

• Memory Holds the last 32 temperature measurements.

• High Accuracy ±0.2°C(±0.4°F)

• Fully CE marked with Berrcoms 25 years of experience in thermometer manufacture.

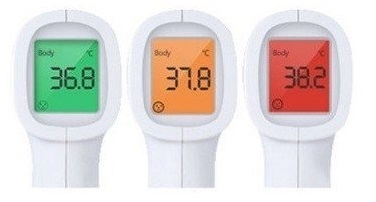

Colour Coded Alert System:

This non-contact infrared thermometer has a visual, color-coded alert system. The screen will change colour and give an audible alarm if a fever is detected or approaching.

Green Backlight: lower than 37.3°C (99.14°F) normal temperature

Orange Backlight: 37.4°C - 37.9°C (99.3°F - 100.2°F), low fever

Red Backlight: higher than 38°C (100.4°F), high fever



Temperature Modes:

This non-contact infrared thermometer can switch between Fahrenheit and Celsius and has 3 modes to choose from: Body, Room and Surface.

To set the mode, simply press the measurement trigger to go to Home Screen.



• Press the MODE button. The LCD screen will display Body. This is the

default setting. If the device will be used to measure body temperature,

leave it on Body mode.



• The device also measures ambient (room) and surface temperature. To

switch the mode to Room, press the MODE button twice. Press the

MODE button three (3) times for the Surface mode.

To choose the measurement scale, press the measurement trigger to go

to Home Screen.



• Press and hold the MODE button until F1 is displayed on the LCD

screen. Press the MODE button to switch between Celsius and

Fahrenheit.







Taking Body Temperature:

To take the body temperature of an individual, press the measurement trigger to go to Home Screen.

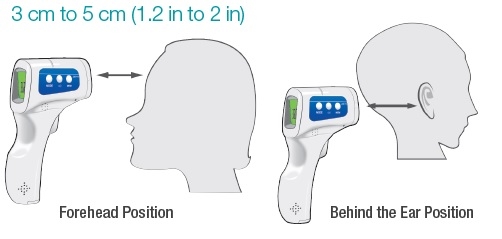

• From no more than 3cm to 5cm (1.2in to 2in), aim the device at the middle of the forehead of the individual being screened. Press the measurement trigger to take the temperature.

 • The temperature will be displayed in one second. (See the diagram below for the device positioning).

• When there is perspiration on the forehead, the temperature may also be taken behind the ear lobe. Ensure there is no hair, perspiration, cosmetics or clothing covering the area. • Allow 3 to 5 seconds between temperature measurements.

• If there is no activity for 30 seconds, the device will automatically shut off. “Wake up” the device, by pressing the measurement trigger.



How do infrared thermometers work?

Heat is emitted from any object or surface including our bodies -  an infrared thermometer can gauge the difference between the infrared rays coming from of the surface of an object and the surrounding environment to accurately reflect the surface temperature of that object.

An Infrared thermometer works by channeling light that is emitted from the object in the form of Infrared rays and focusing that light into a sensor called a thermopile.

Advantages of Temporal Artery (ta) Temperature The temporal artery runs across the forehead, just below the skin. It is connected to the heart by the carotid artery, which is connected to the aorta. Given the location of this major artery, measuring the temperature at the forehead renders a reliable result when used for screening purposes. Taking temperature at the forehead may be preferable when compared to other methods because of the efficiency, speed and comfort. Operating Principle All objects, solid, liquid or gas, emit energy by radiation. The intensity of this energy depends on the temperature of the object.

The Non-Contact Forehead Infrared Thermometer works by detecting the radiation energy being emitted by the arterial blood flow in the forehead, which is in close proximity to the heart and runs just below the skin surface. When the radiation sensor of the thermometer is activated, the forehead temperature measurement is taken by detecting the infrared heat generated by the arterial blood flow. Temperature Modes and





Display Resolution: 0.1°C (0.1°F)

 Operating Temperature: 10°C to 40°C (50°F to 104°F)

Storage Temperature: 0°C to 50°C (32°F to 122°F)

Humidity Rate: ≤ 85%

Power: DC 3V 2x 1.5v AA Batteries (not included)

Size: 155 mm L x 100 mm W x 40 mm H (6.1 in L x 3.93 in W x 1.57 in H)

Weight: 154gr/0.34lbs (with batteries) 105gr/0.23lbs (without batteries)

Body Mode: 32°C to 43°C (89.6°F to 109.4°F) Surface Mode: 0°C to 60°C (32°F to 140°F)

Room Mode: 0°C to 40°C ( 32°F to 104°F) Accuracy: ± 0.3°C (0.54°F)

Measuring Distance: 3cm to 5cm (1.2in to 2in) Response Time: 1 second
